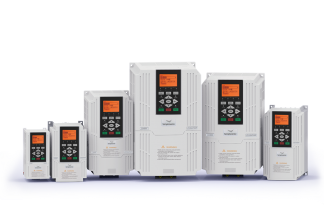

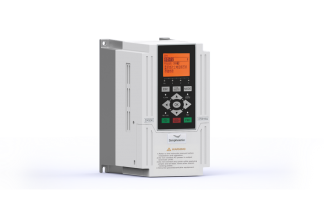

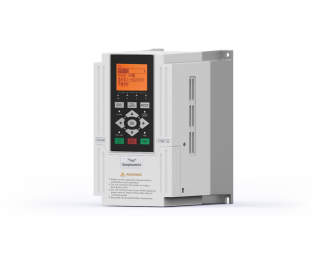

DX500 series closed-loop vector ac drive

DX500 is a new generation of market-oriented closed-loop vector inverter created by Simphoenix Electric. Its compact body makes assembly easier and can cover more customers who have requirements for machine structure. At the same time, DX500 fully inherits the closed-loop vector, open-loop vector, and V/F control algorithms of our high-end inverters, as well as flexible parameter configuration, rich and diverse expansion interfaces, and hundreds of warnings and alarms. It is a product with superior performance and protection functions, complete range of high-performance closed-loop vector inverters.



Typical Applications

-Machine tool
-Textile machinery
-Food packaging
-Elution equipment


Features

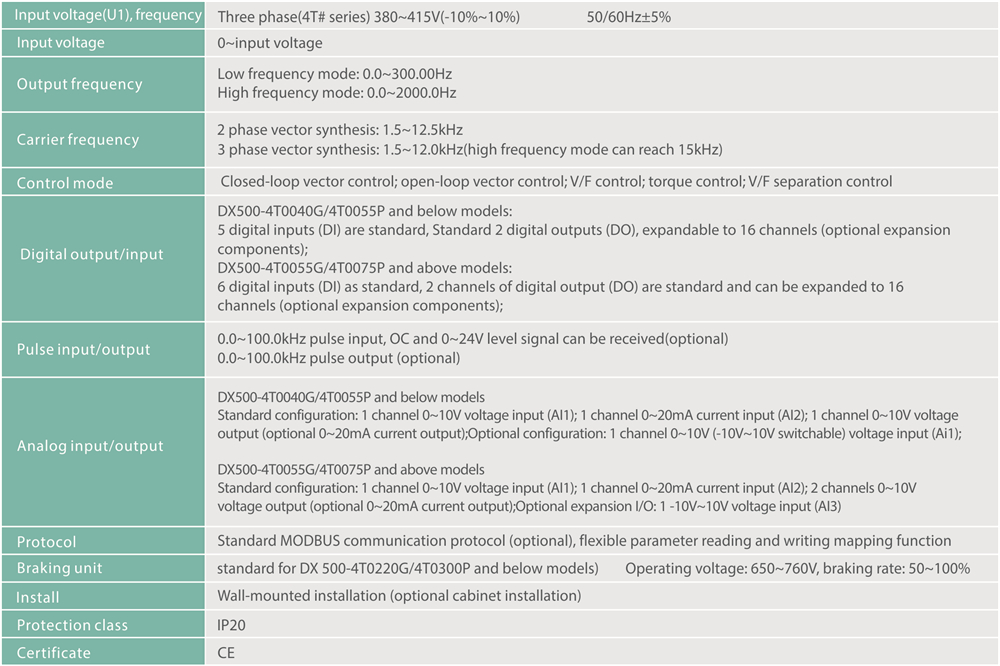

Specifications

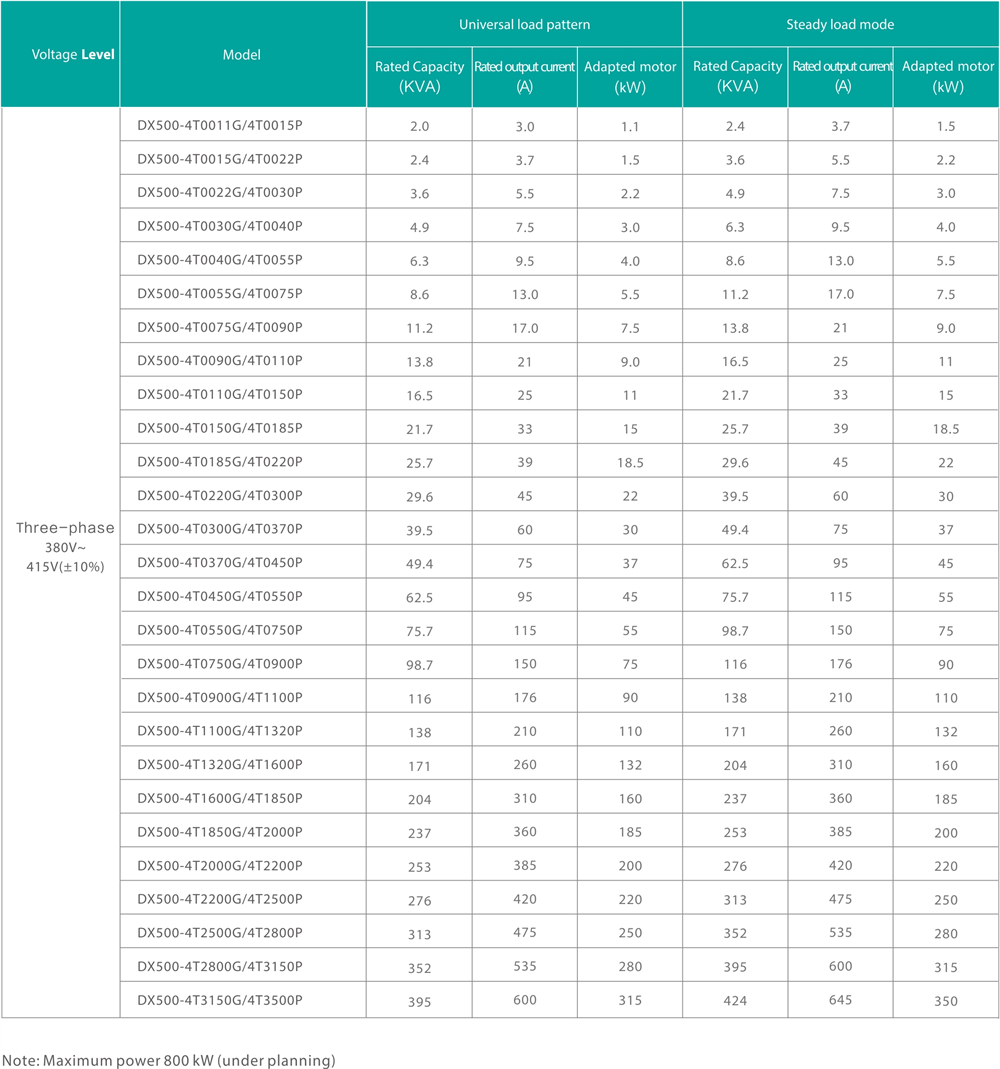

Model Table

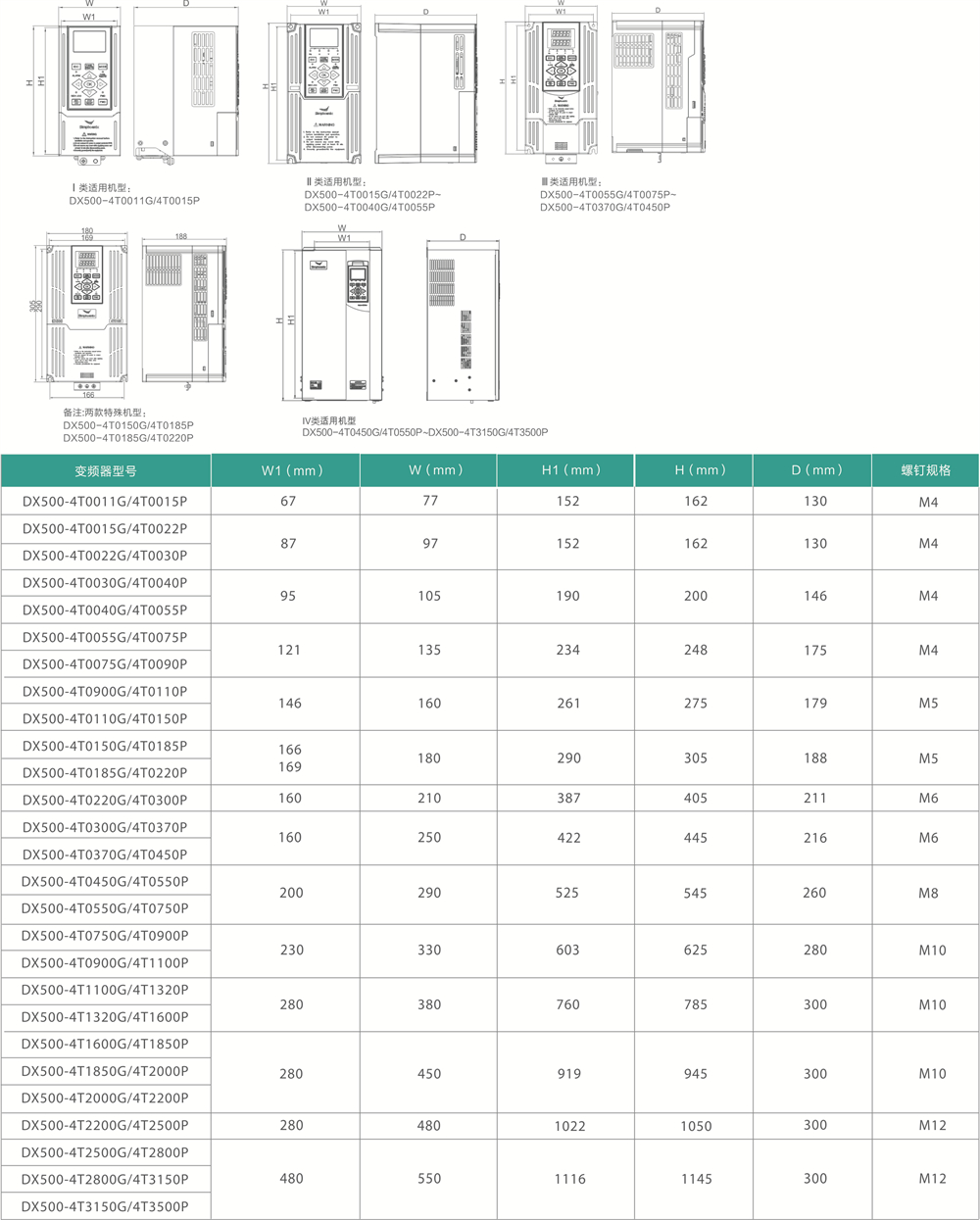

Installation And Dimension Figure

-The closed-loop vector mode has a steady speed accuracy of 0.02% and a starting torque of 200% at zero speed.
-With 8 channels of one-to-one virtual output and input ports, complex engineering field applications can be easily realized without external wiring.
-Easily achieve synchronous transmission of multiple machines and can freely choose to achieve linkage balance of multiple machines based on current, torque and power.
-Intuitive real-time monitoring can monitor nearly a hundred monitoring parameters such as power usage, running time, input and output current and voltage, fault records, etc.
-Users can freely select the priority order of various frequency/speed setting channels, which is suitable for combination applications in various occasions.
-There are hundreds of setting combinations for frequency, speed, torque, etc.
-3 built-in timers, 5 types of clocks, and 2 built-in counters can solve various complex timing and counting needs.
-Excellent operating experience, the operation panel adopts ergonomic design to realize functions such as parameter locking, unlocking, parameter downloading and uploading, and there are a variety of operation panel options to meet the needs of various customers.







  • Previous:
  • Next:

  •

    技术规格

    型号表

    安装尺寸
