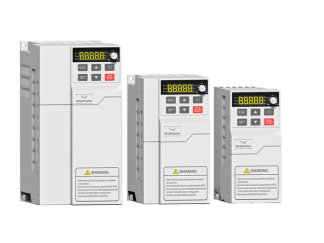

DL300 series open-loop vector general iinverter

DL300 is a super small ac drive with elegant appearance and excellent performance, inherit the control algorithm of simphoenix high-end inverter, support asynchronous motor VF and open-loop vector, permanent magnet motor open-loop vector control, and flexible parameter configuration, which is a vector inverter with superior performance and complete protection functions.

Applications:
Widely used in the food machinery, engraving machine, wood-working machine, and photovoltaic energy


Features

Specifications

Model Table

Installation And Dimension Figure

-Based on the new hardware platform, the product has passed stringent testing standards and has higher reliability
-High frequency can reach 1000Hz, and the frequency control accuracy is controlled within 0.1%
-Starting torque: 0 speed 180%;     Speed range:1:200
-Programmable 7-segment speed operation, each segment’s running time, acceleration/deceleration time, and running direction are independently
-4 multi-function input terminals, up to 12 channel combinations, to achieve flexible control parameters
-Automatic voltage regulation and automatic current limiting function, in the environment where the grid voltage and current are unstable, the output voltage can be quickly stabilized and the output current of the inverter can be controlled


Product detail pictures:

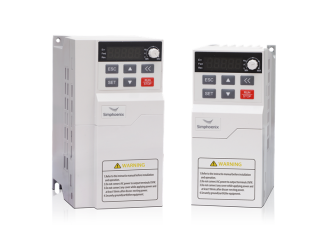

DL300 series open-loop vector general iinverter detail pictures

DL300 series open-loop vector general iinverter detail pictures

DL300 series open-loop vector general iinverter detail pictures


Basic Motion Control – A Glossary of Terms Used With Variable Frequency Drives and Electric Motors
Variable Frequency Drives (AC)

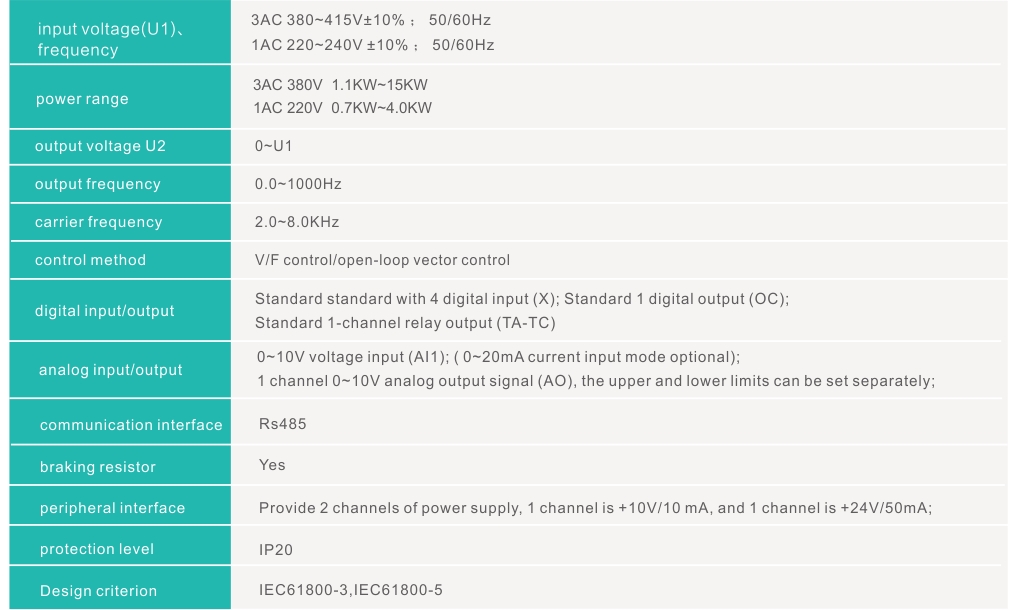

技术参数

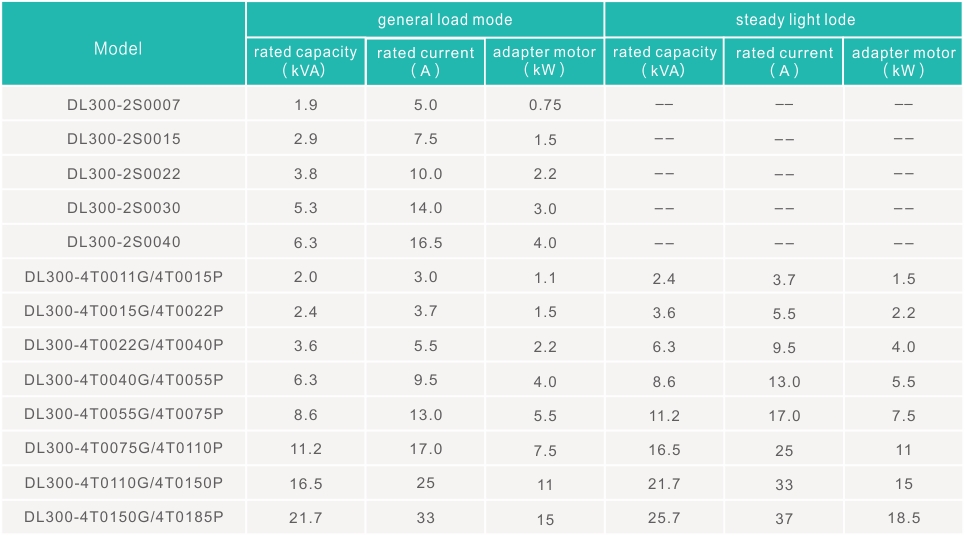

型号表

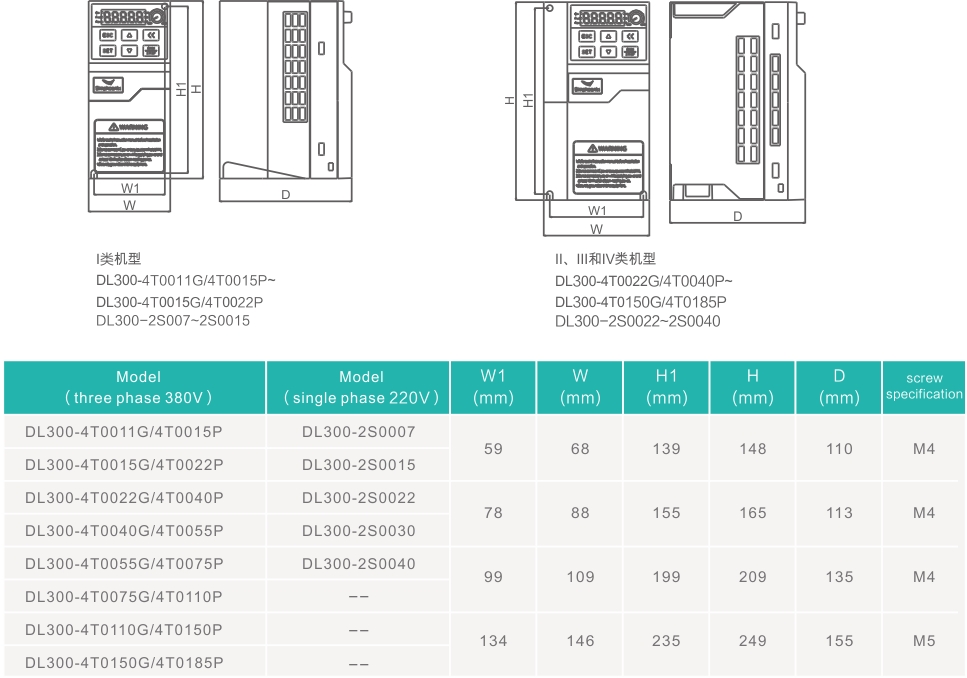

安装尺寸
