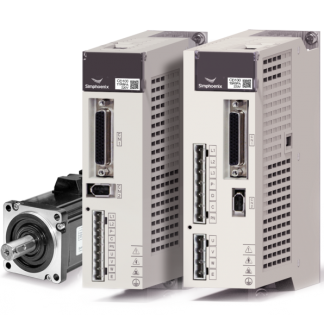

CD100 series servo drive

CD100 series servo driver is a new generation of economical medium and small power AC servo control unit developed by Simphoenix Electric on a new platform.  The power range is 100W~7.5kW.  It has the characteristics of high integration, small size, good heat dissipation effect, reliable performance, beautiful structure design and so on.  No debugging function with the upper computer software, greatly improve the servo system to use the site adaptability, widely used in numerical control processing, packaging printing and dyeing, textile woodworking, new energy, industrial robots and other fields.




Features

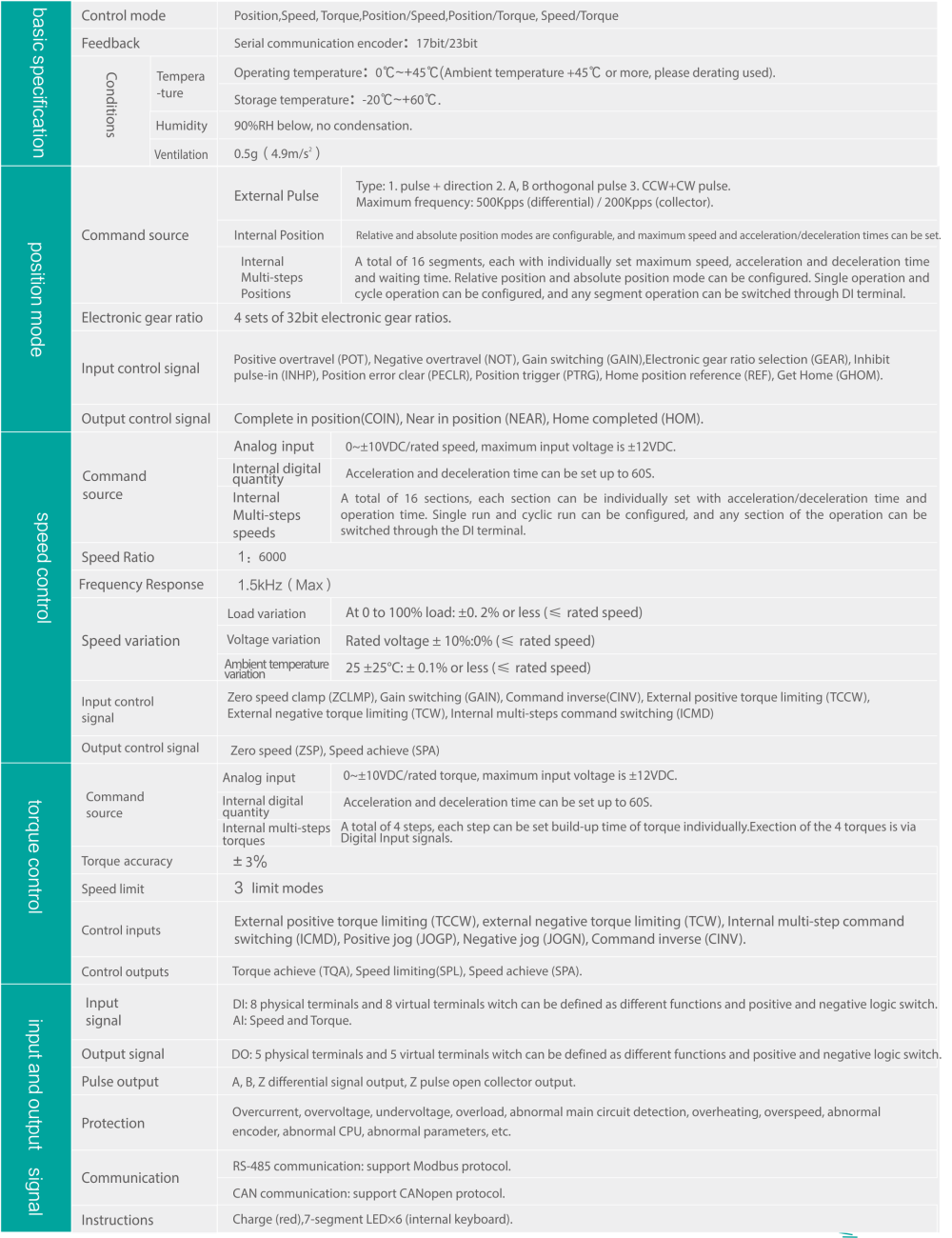

Specifications

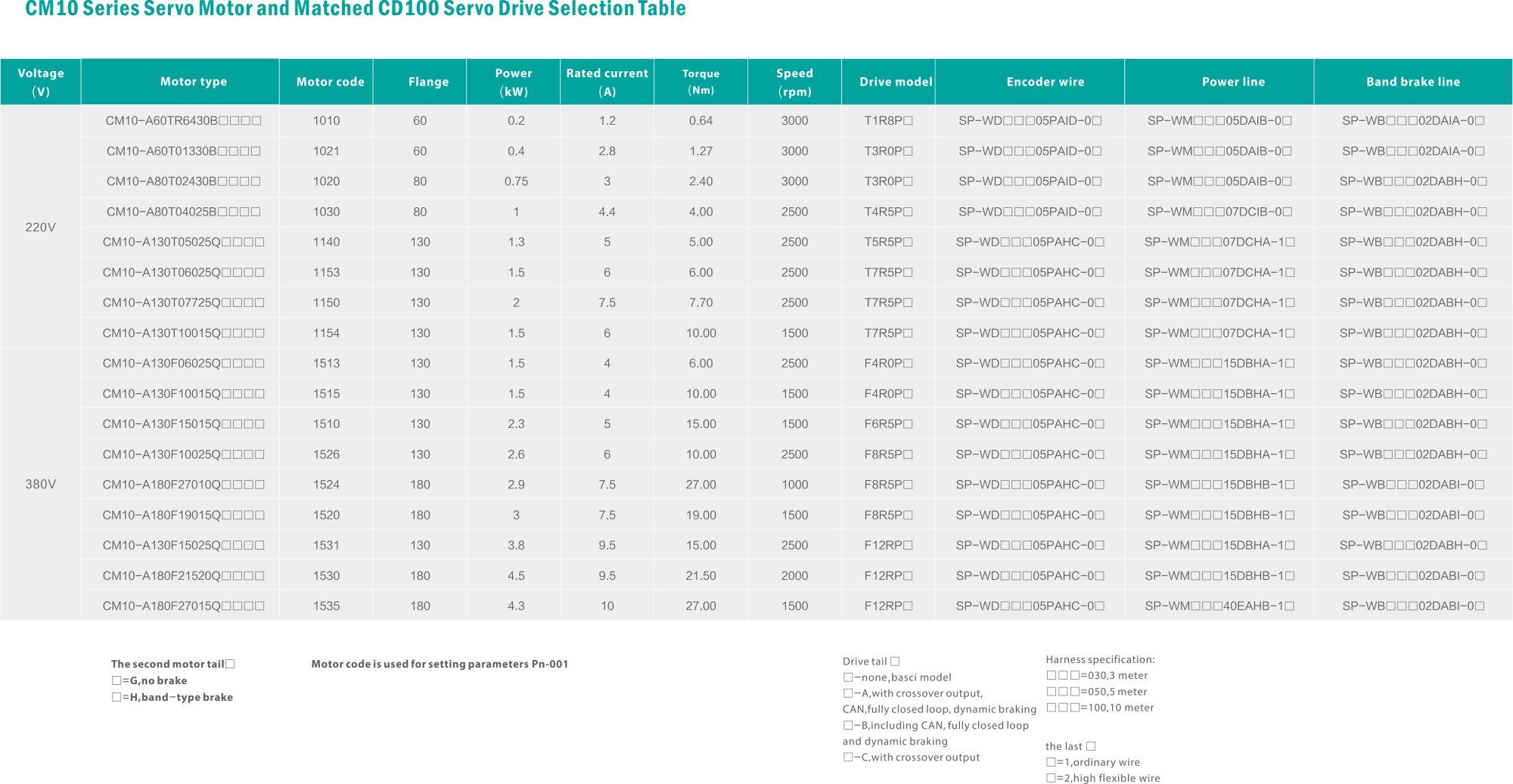

Model Table

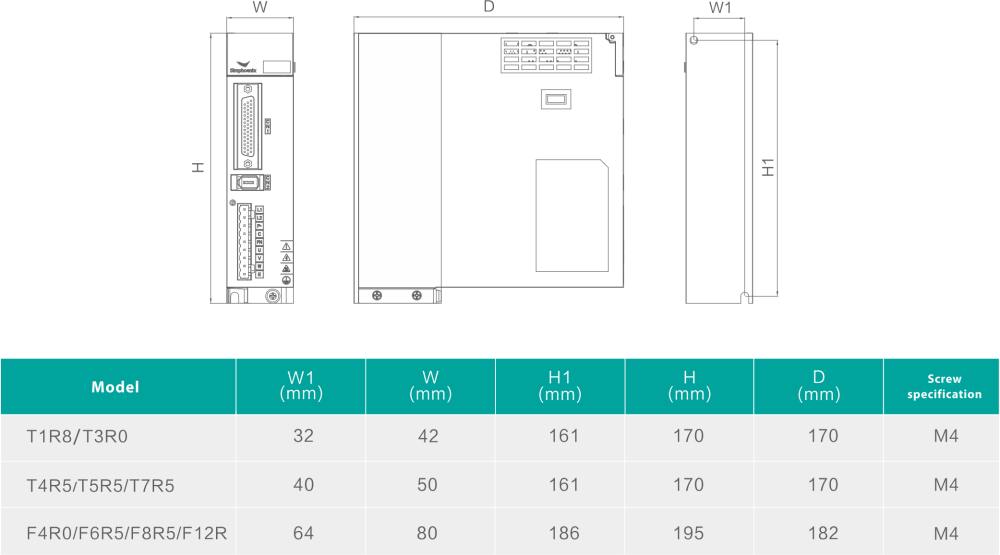

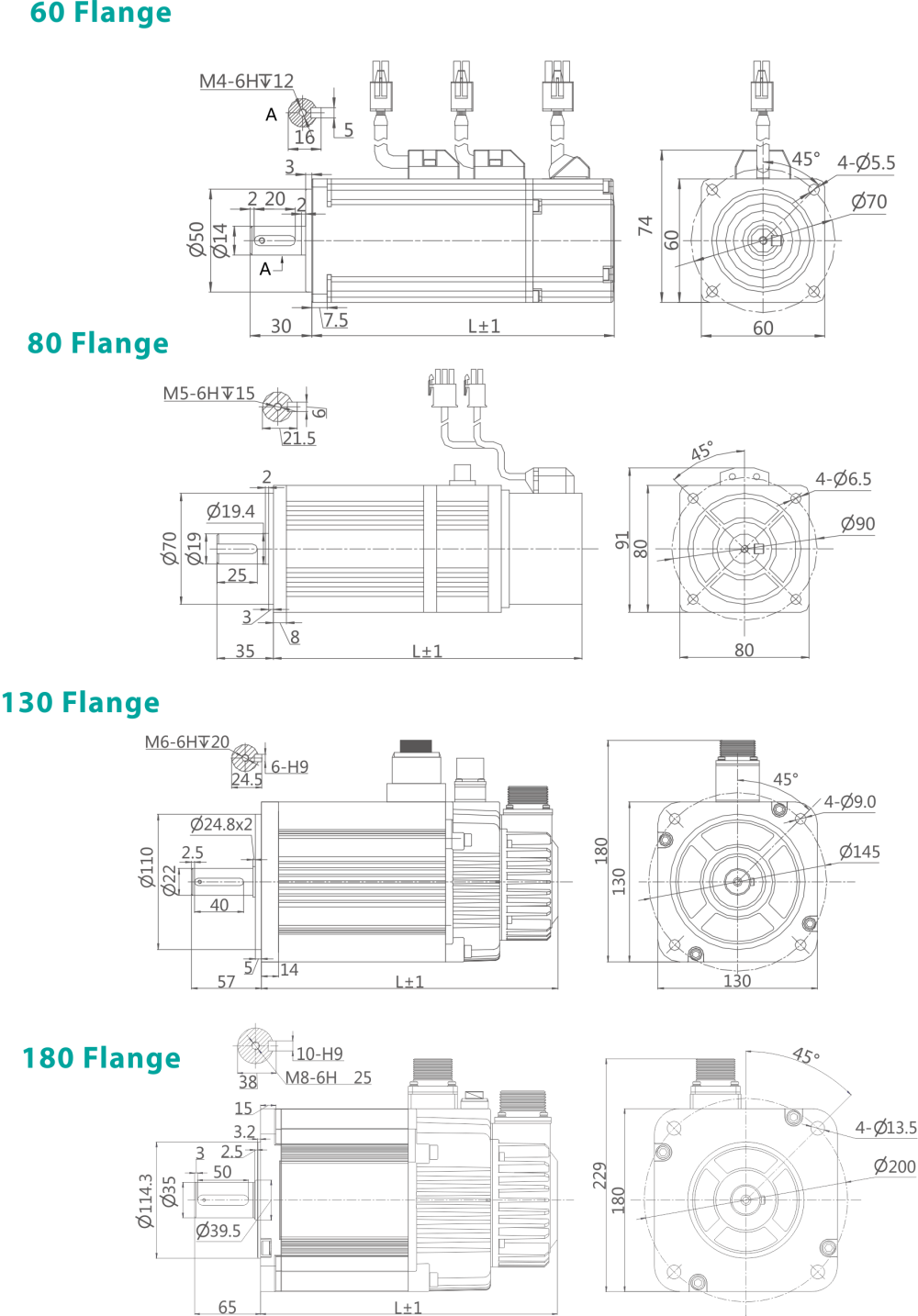

Installation And Dimension Figure

-Standard double RJ45 port, can better achieve multi-unit network linkage
-Automatic recognition of inertia and automatic gain adjustment to shorten servo adjustment time
-Full closed loop function design, higher precision, wider applications
-Standard USB function, with the upper computer debugging more convenient
-Single-phase standard 17bit single-turn absolute value encoder, three-phase standard 23bit single-turn absolute value encoder, more convenient and flexible application
-The drive is smaller and has a higher power density


Product detail pictures:

CD100 series servo drive detail pictures

CD100 series servo drive detail pictures


Basic Motion Control – A Glossary of Terms Used With Variable Frequency Drives and Electric Motors
DC/AC Power Inverter: How It Works!




技术规格_副本

tabel_副本

ins1_副本

ins2_副本
