中文FS100 Series Special Drive for Scroll Machine
FS100 series (air conditioner) driver is used for BLDC synchronous machine control of scroll compressor, designed with input voltage of single-phase 220V/three-phase 380V and maximum output frequency of 1000Hz. adopts our self-developed open-loop vector control algorithm of scroll machine driver to realise BLDC non-inductive control. It supports multiple protection functions such as undervoltage, overvoltage, overcurrent, overload, overheat and short circuit. The driver adopts forced air-cooled or liquid-cooled programme, the whole machine design life of 10 years, can be configured with EMI filter and DCL DC reactor, to improve its own anti-interference ability, while reducing the interference to the power grid.
Application:
Modular units, multi-connected units, unitary units, heating units, water heating units, fans, pumps, etc.
- Mature and stable vortex drive control algorithm, which can match with mainstream compressor brands in the market.
- Optocoupler-isolated 485 circuit,supports standard Modbus -RTU protocol,can be customised to develop special communication protocol.
- Low-speed high-torque output,zero-speed torque up to 180%; Stable speed accuracy up to ±0.02%; Fast torque response,response time less than 25ms.
- Perfect undervoltage,overvoltage,overcurrent,overload,overheating,short circuit and other protection functions improve the stability and reliability of the system.
- Integrated plate structure design,covering 2P to 45P compressor drive,supports embedded and wall-mounted installation,small volume and easy to install.
- Absorb surge voltage and reduce electromagnetic interference.

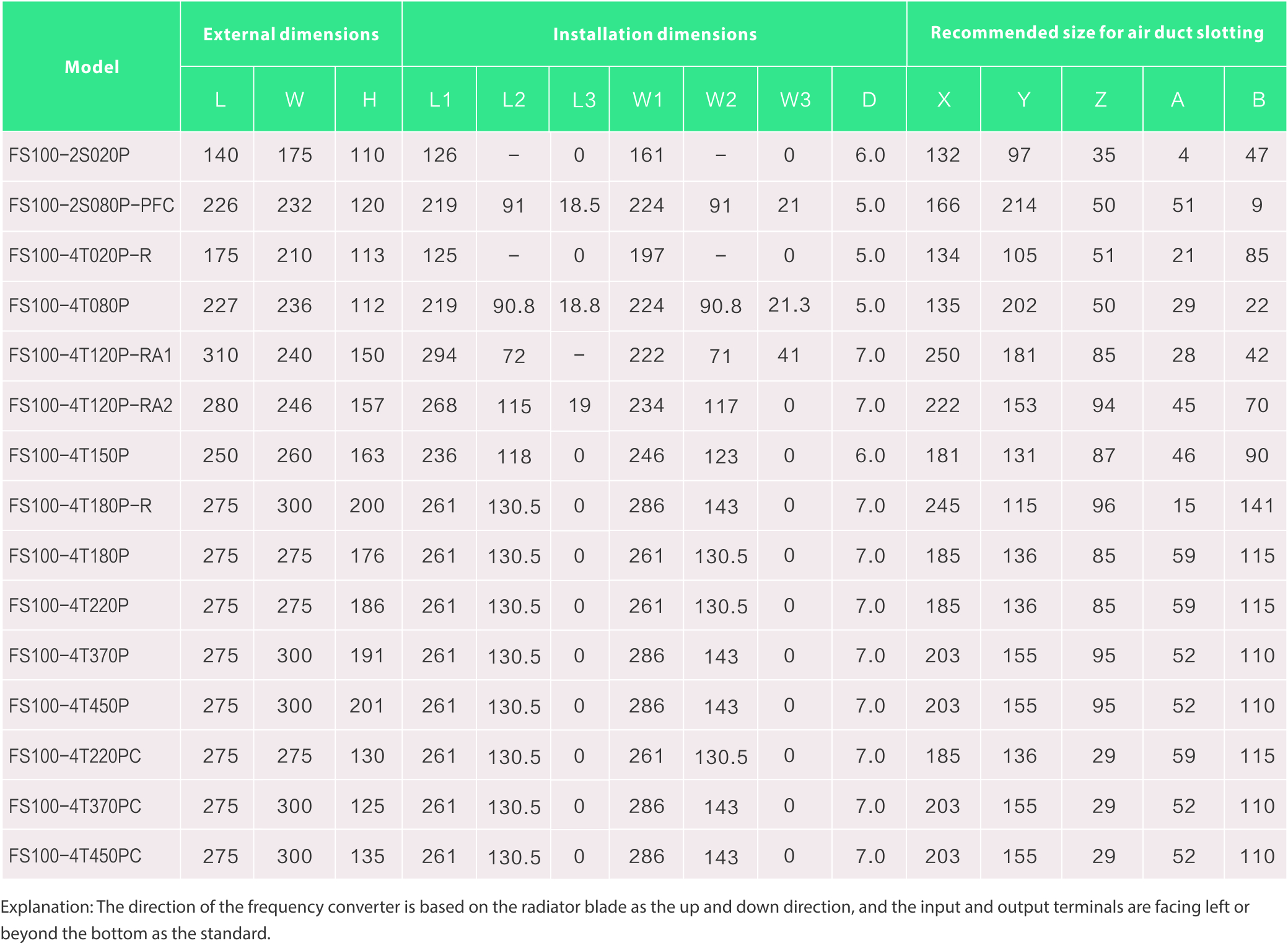

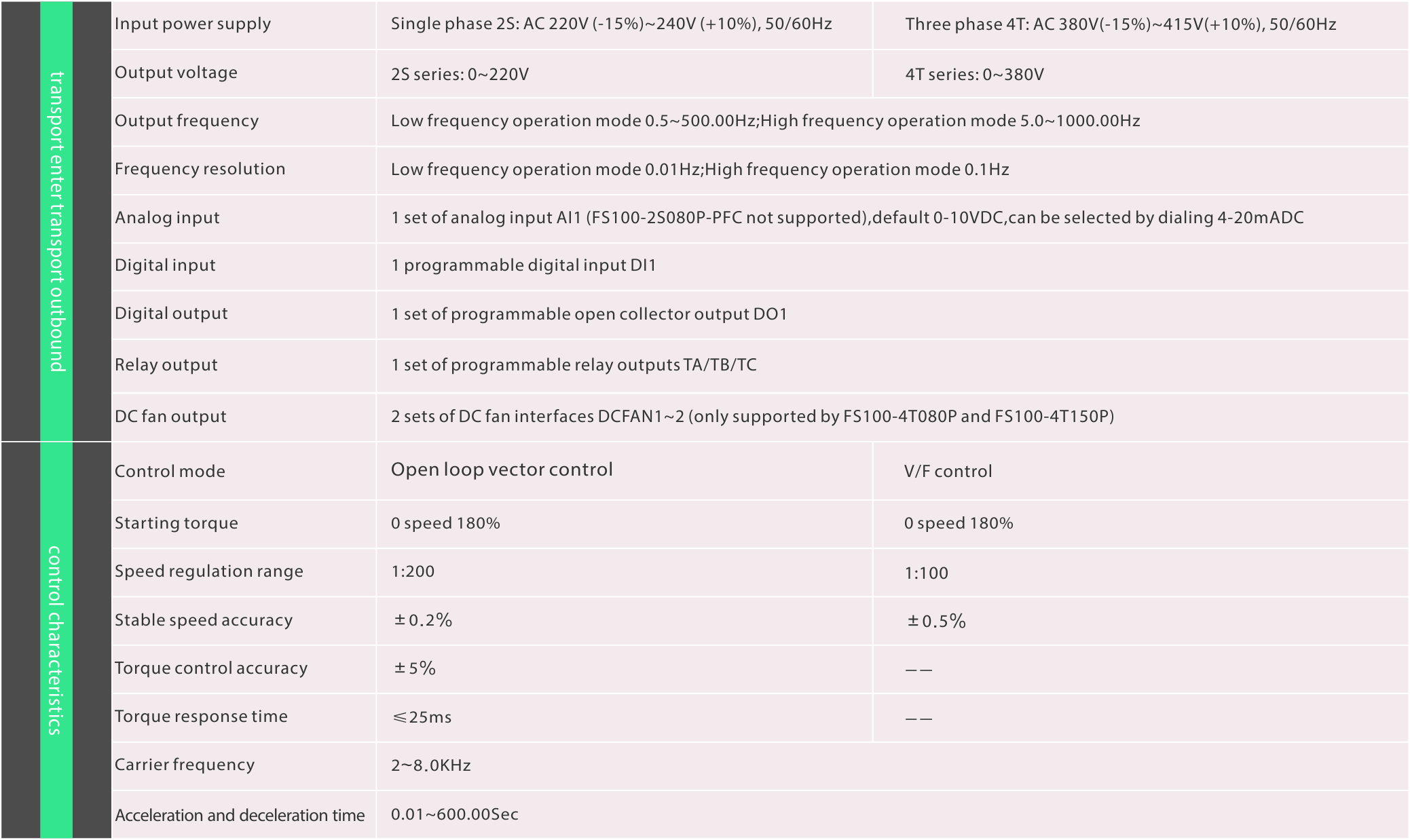

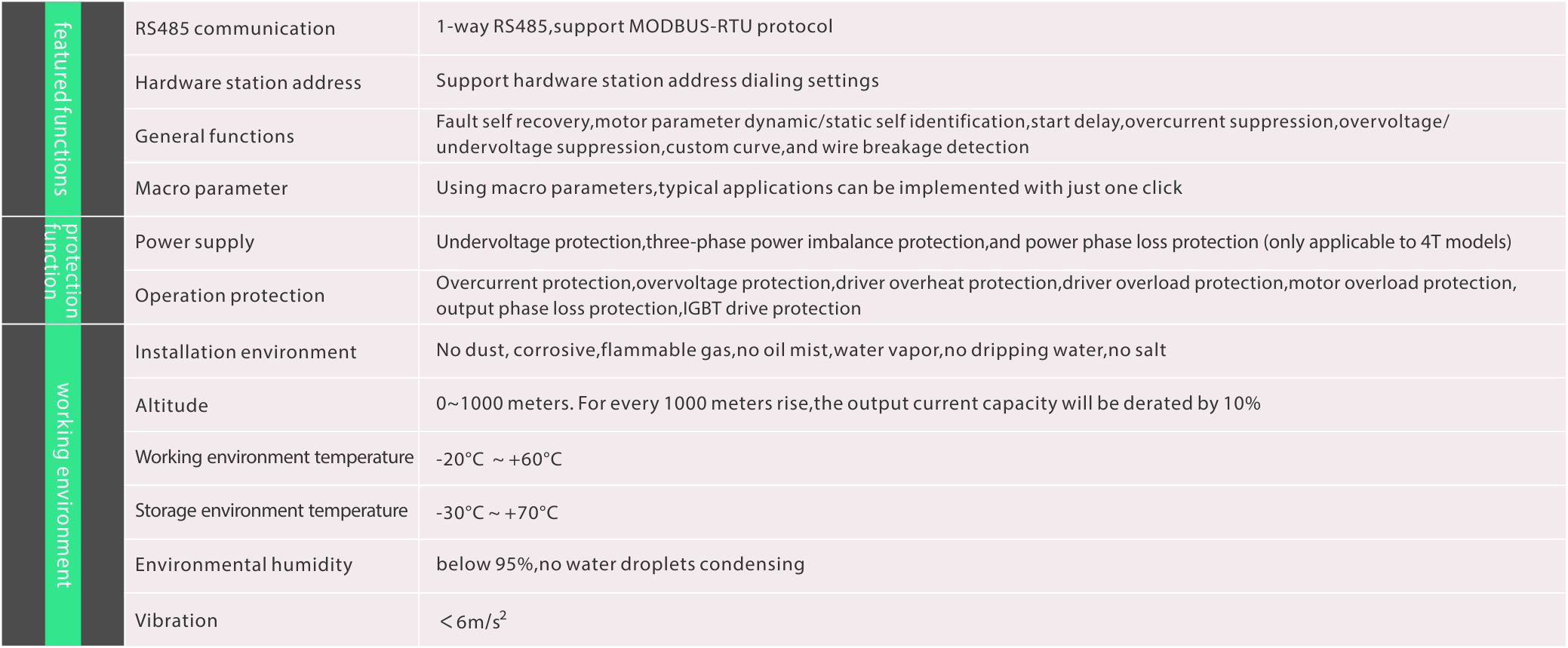

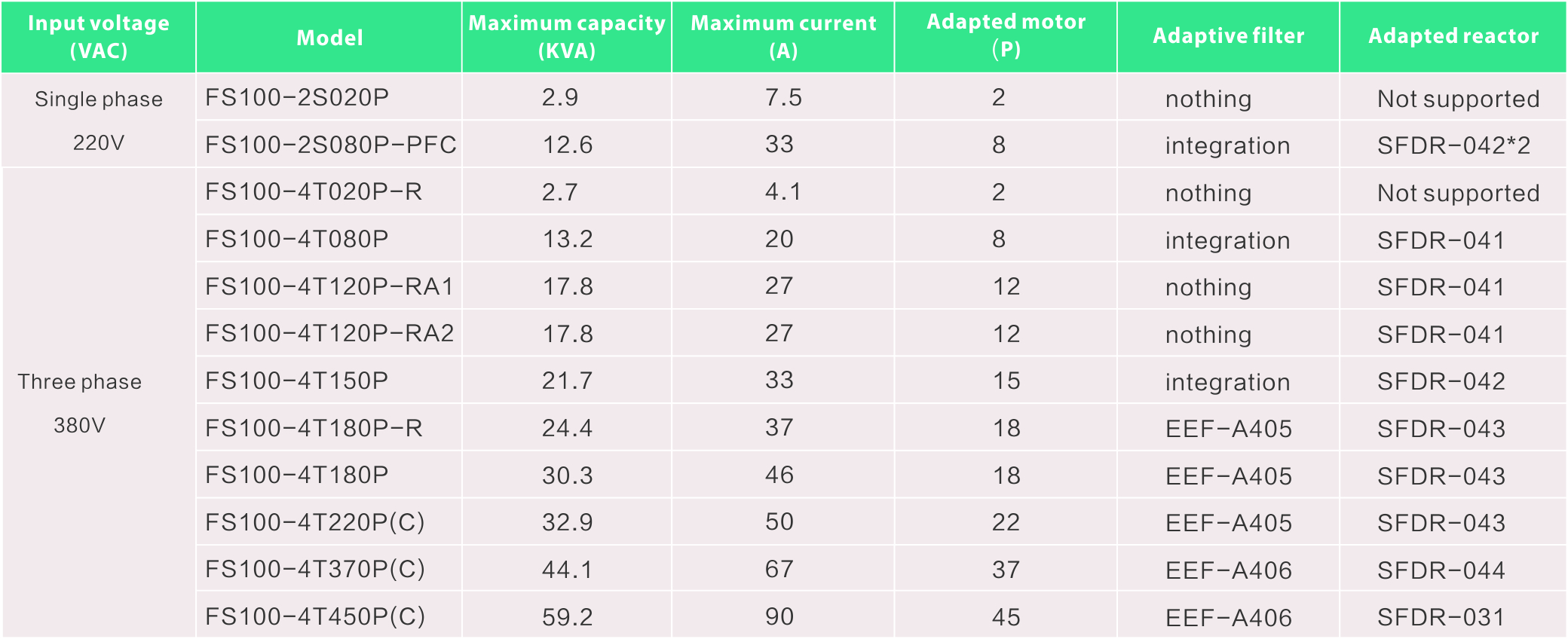

Product detail pictures:
