DL100 Series Low-power General-purpose Inverter

DL100 series is a small general-purpose inverter developed based on a new software and hardware platform to meet more market needs. It has the characteristics of small size, simple operation, complete protection functions, stable and reliable operation, and can be
flexibly applied to various process sites.


Features

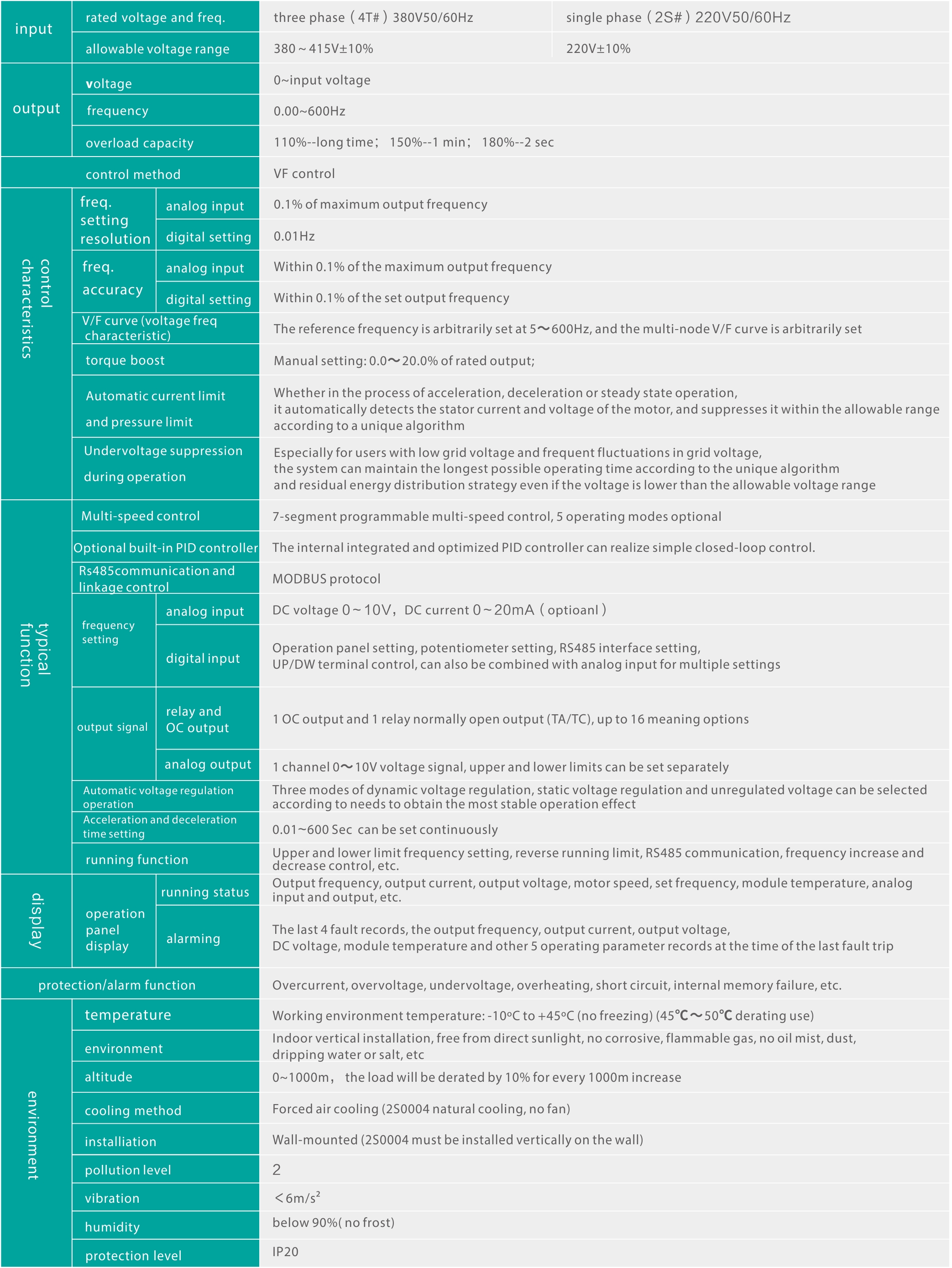

Specifications

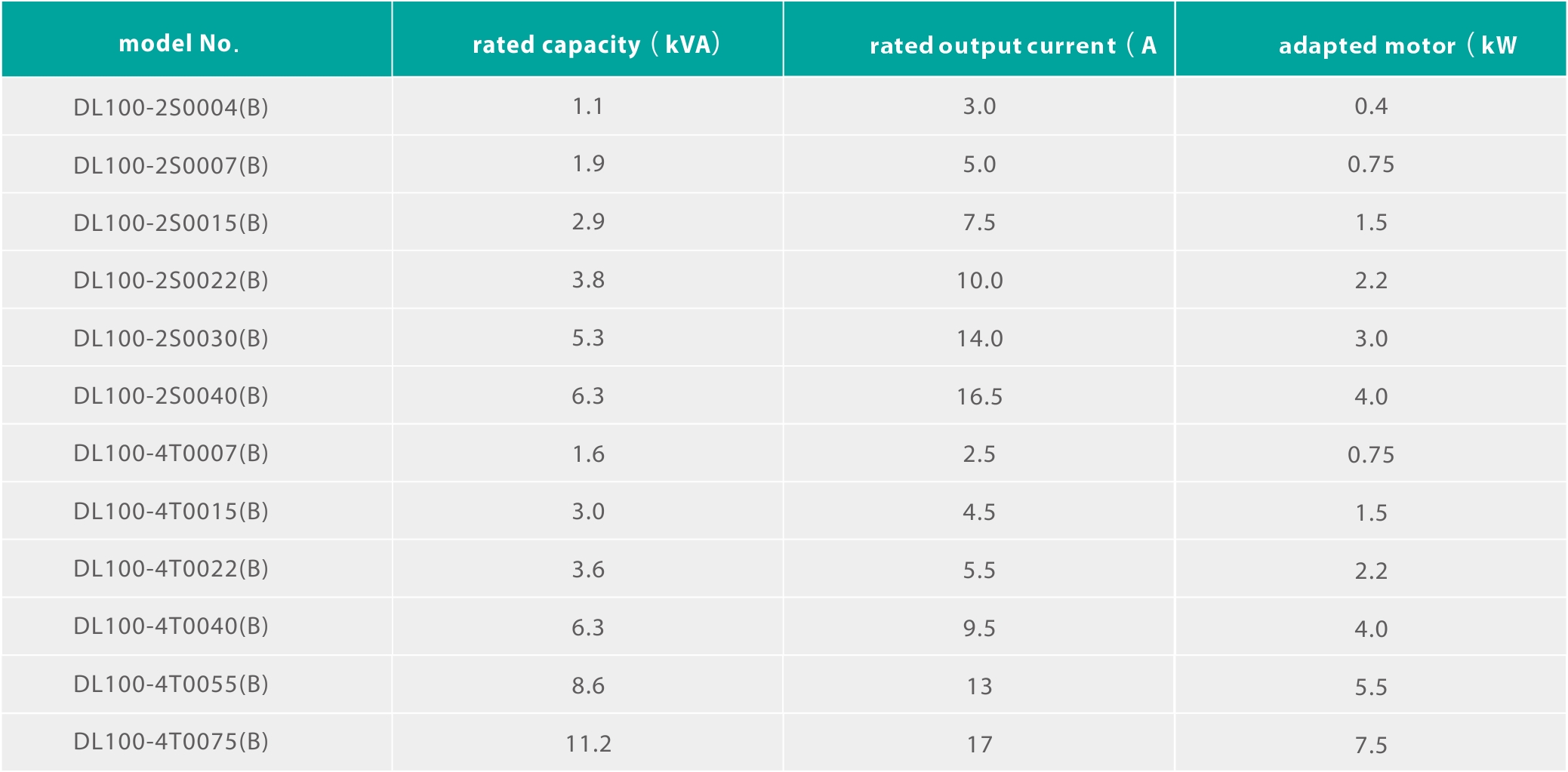

Model Table

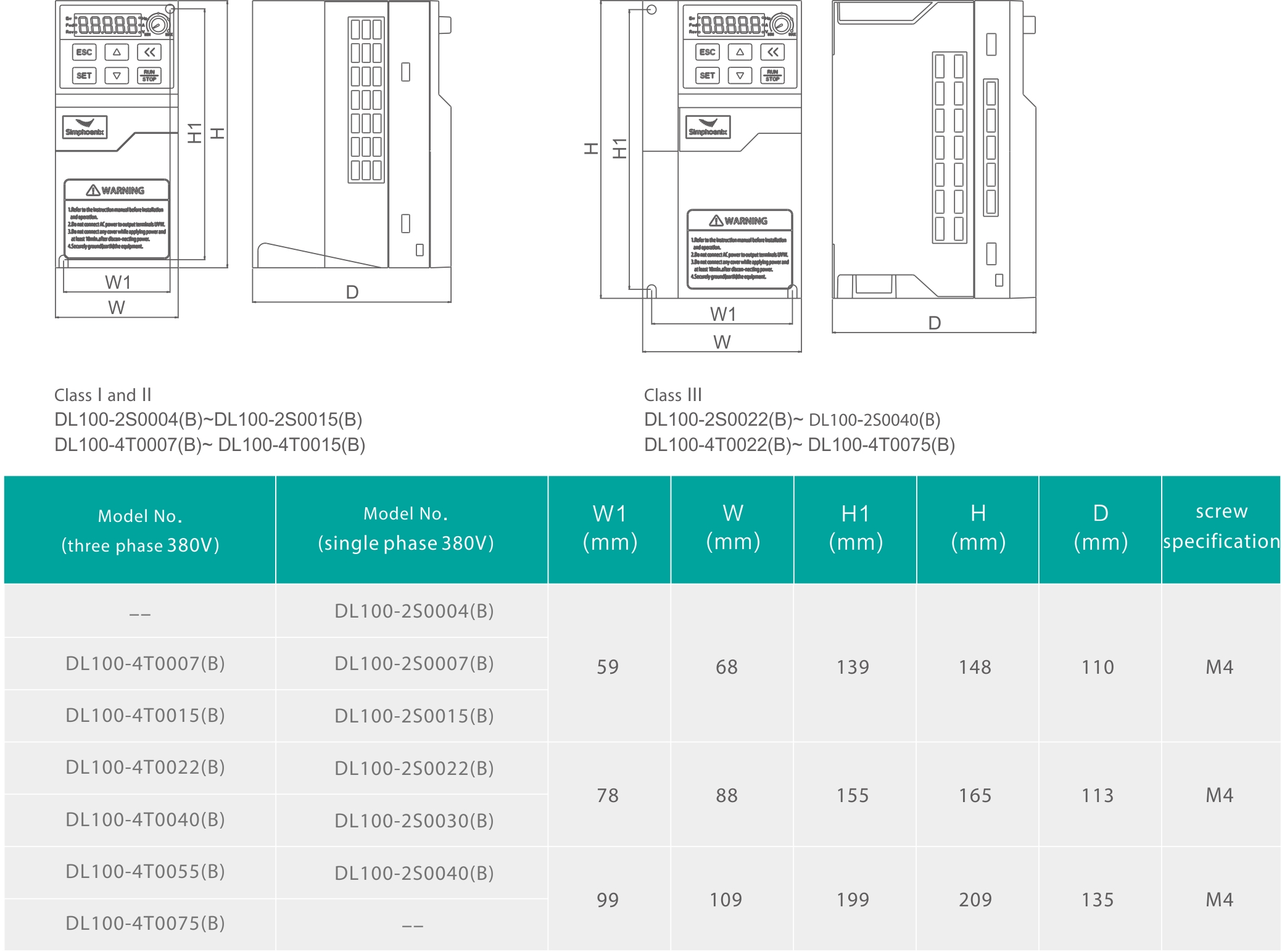

Installation And Dimension Figure

- Based on new hardware platform, high reliability with stringent test
-The high frequency can reach 600.00Hz, and the frequency control accuracy is controlled within 0.1% to achieve high-precision control system requirements
-4 multi-function input terminals, up to 12 channel combinations, to achieve flexible control parameters
-Multiple protection functions and fault checking mechanisms are convenient for later maintenance while ensuring long-term reliable operation of the inverter
-Support the monitoring of nearly hundreds of parameters such as power, running time, input/output current and voltage, fault record in real time
-Programmable 7-segment speed operation, each segment’s running time, acceleration/deceleration time, and running direction are independently
adjustable
-Equipped with RS485 communication interface, standard MODBUS protocol can easily realize real-time communication with PLC, industrial computer and other equipment, and has the function of linkage and synchronization control
-Supports adaptive control technology, automatic voltage stabilization and current limiting functions, stable operation even in an environment with unstable grid voltage and current


Product detail pictures:

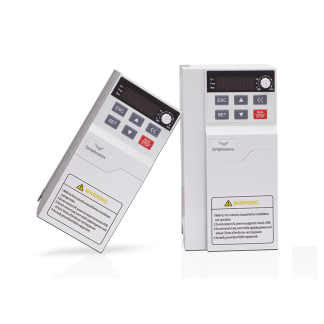

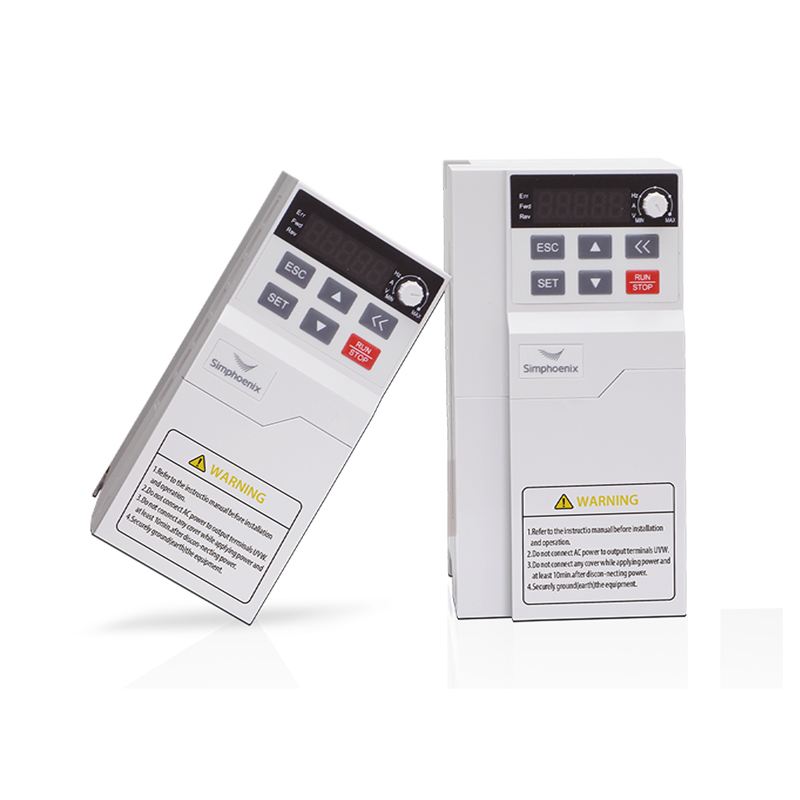

DL100 Series Low-power General-purpose Inverter detail pictures

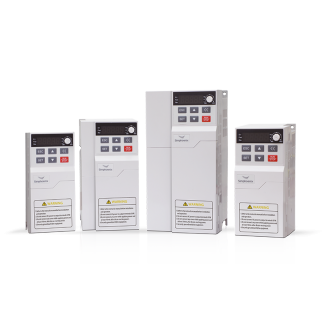

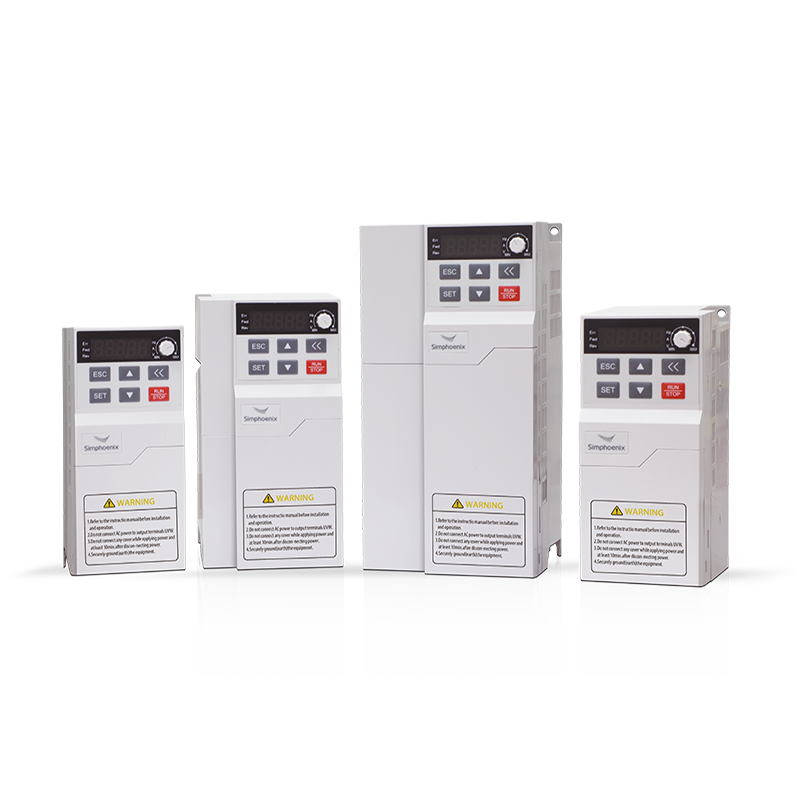

DL100 Series Low-power General-purpose Inverter detail pictures

DL100 Series Low-power General-purpose Inverter detail pictures


Variable Frequency Drive Systems
Introduction to Variable Frequency Drives (VFDs)





specifications

model table

installation
