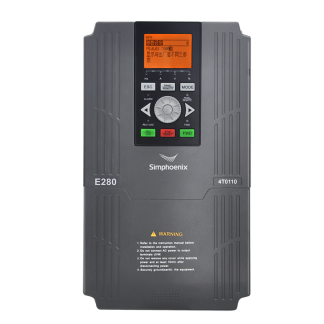

E280 series general vector ac drive

E280 is developed on the basis of our E series AC drive which originally launched in 2004. Through field test of more than 1.2 million AC drives and continuous improvement and optimization of four generation products, stability and reliability has become the key character of our E series products.



Typical application
-Machine tool
-Textile machinery
-Cable machinery
-Petrochemical processing
-Construction
-Transmission


Features

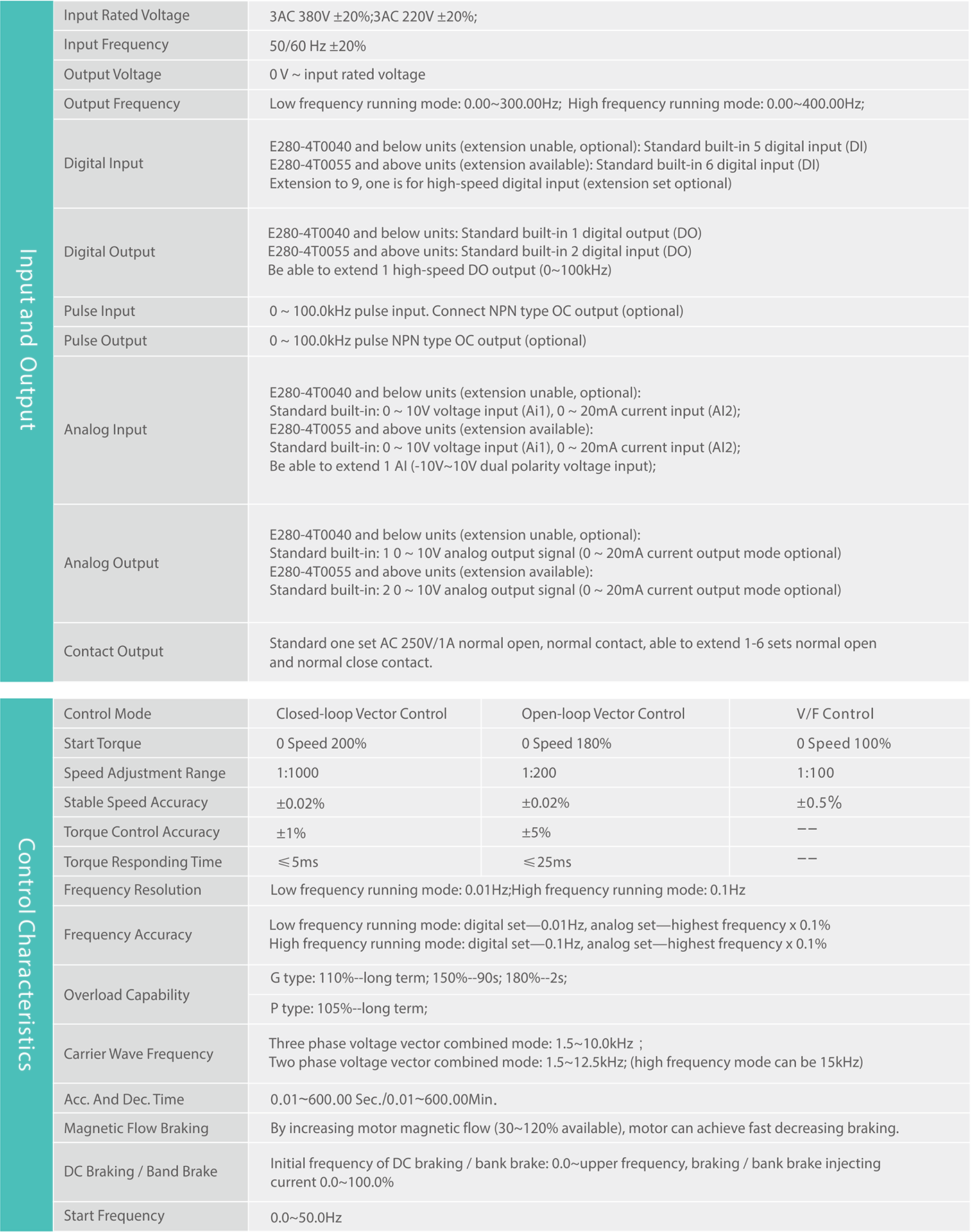

Specifications

Model Table

Installation And Dimension Figure

-Strong torque at low frequency. 200% start torque at 0Hz under VC control, 180% start torque at 0Hz under SVC control.
-Standard 5-digit two-line LED panel display and LCD keypad optional.
-Intuitive real-time monitering to know nearly hundred kinds of parameters, like usage of electricity, running time, input & output voltage and current, error record etc.
-Built-in several system macro and application macro, and it simplifies parameter setting by macro parameter calling.
-Hundreds of combinations of torque and revolution.
-Programmable 16-segment speed running, indepedent setting of running time, acceleration & deceleration time and moving direction of each segment.
-Flexible configuration of priorities of frequency or rotate speed setting channels.
-Software virtual I/O function with simple parameter setting, it configures virtual I/O flexibly that reduce external interference and simplify wiring.
-Abundant warning and protection functions.


Product detail pictures:

E280 series general vector ac drive detail pictures

E280 series general vector ac drive detail pictures

E280 series general vector ac drive detail pictures

E280 series general vector ac drive detail pictures

E280 series general vector ac drive detail pictures
