CA100 series servo drive

CA100 series servo drive is designed based on a new software and hardware platform. With high cost performance CA100 series servo drive is suitable to the application fields like machine tool, engraving machine, textile and packaging. It has position, speed, torque and multiple control mode and is able to enhance functions to meet the requirement of different kinds of applications.



Typical applications
-Machine tool
-Engraving machine
-Textile equipment
-Packaging machinery
-Cutting machine
-Food processing


Features

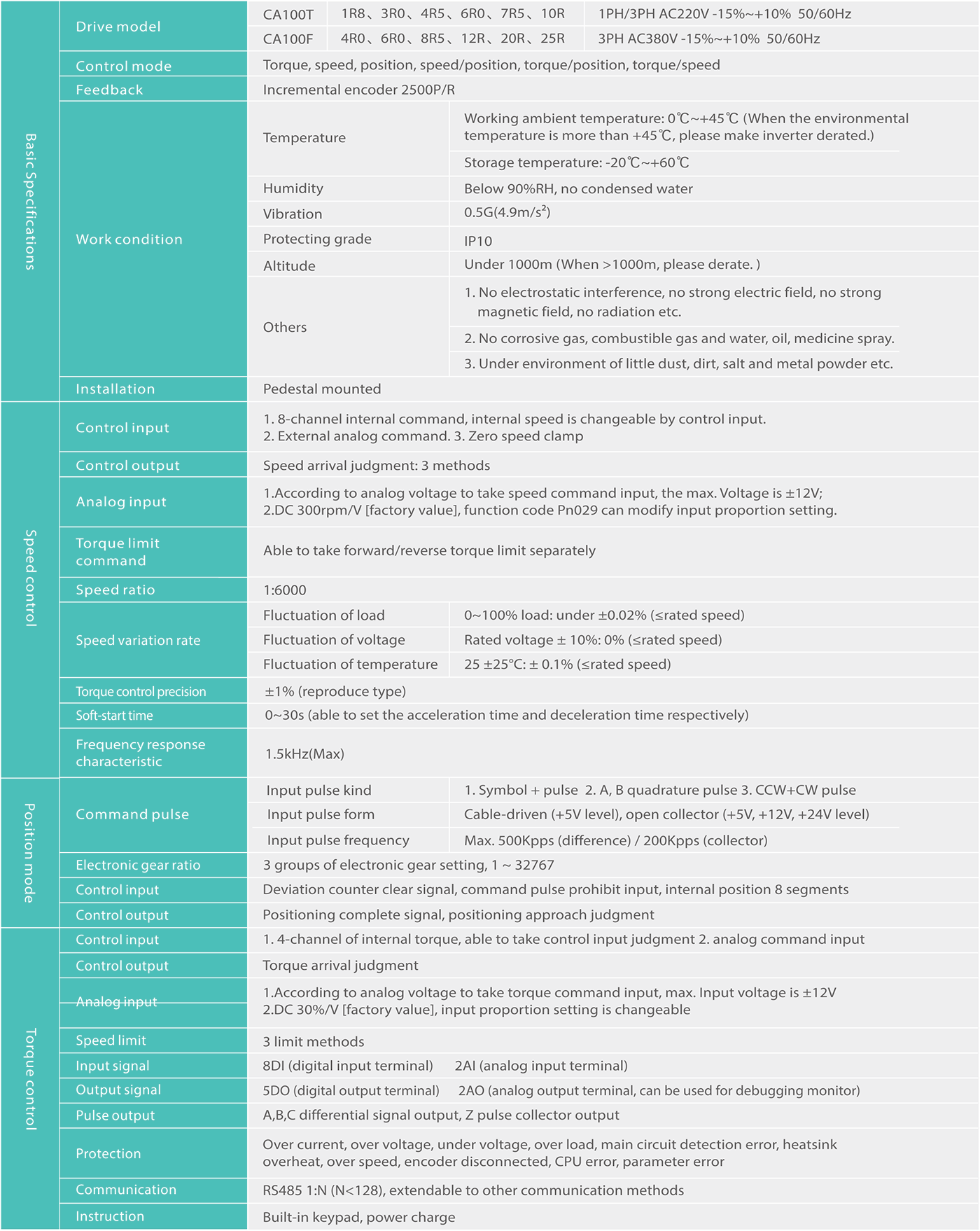

Specifications

Model Table

Installation And Dimension Figure

-Various control mode like position, speed, torque and multiple compound control.
-Response frequency is 1.5kHz.
-Available of 2500 P/R,17bit,20bit multiple encoder.
-With the load inertia integration, load interia identification and vibration depression dialing device.
-Overload capacity up to 3 times.


Product detail pictures:

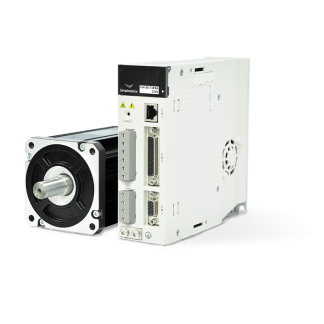

CA100 series servo drive detail pictures

CA100 series servo drive detail pictures


Variable Frequency Drive Systems
Basic Motion Control – A Glossary of Terms Used With Variable Frequency Drives and Electric Motors

specifications

model tableappendix1appendix 2

dimensions
