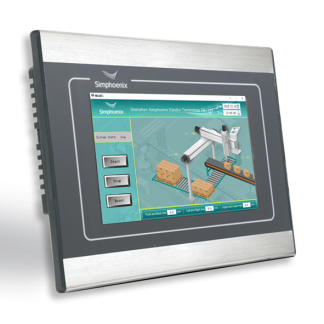

EM3 series human machine interface

EM3 series human machine interface is a new HMI launched by Simphoenix. The new appearance of mental strip drawing is completely integrated into electrical control cabinet. It offers a better visual effect and excellent touch experience through Cortex A8 processor, 24-bite true-color display in collocation with configuration software Simphoenixface with rich functions.




Features

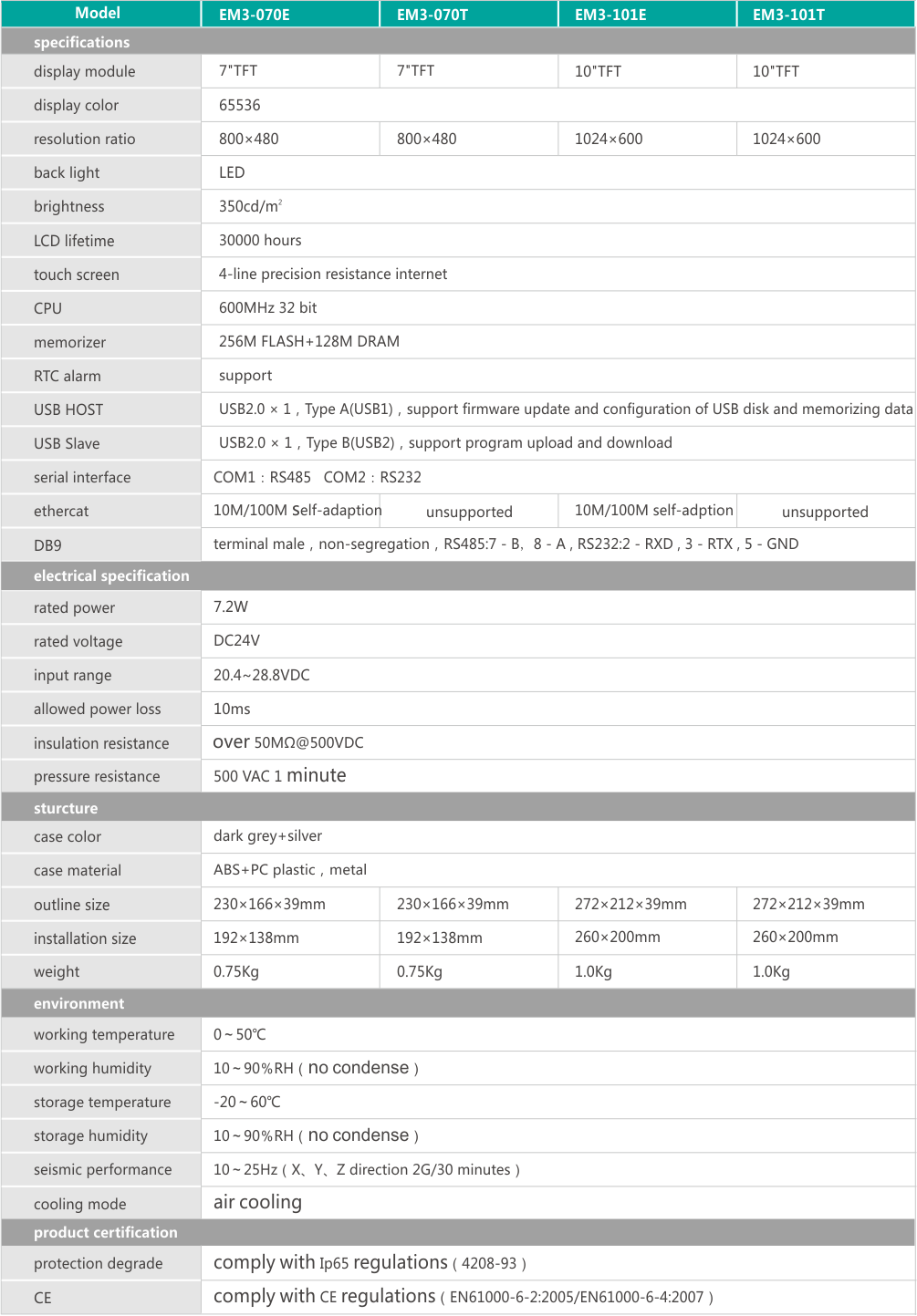

Specifications

Model Table

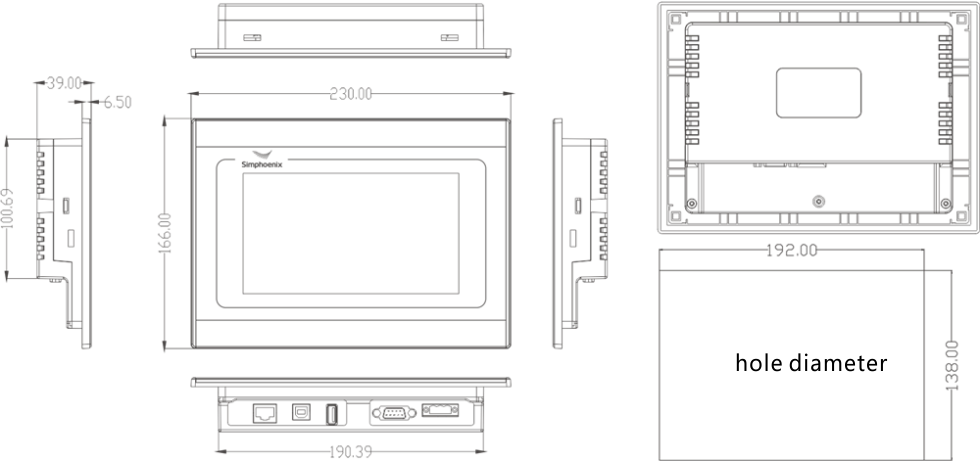

Installation And Dimension Figure

- Industrial design standard with high requirements. Support reliable running in terrible condition
-high collocation and large storage. A8 processor platform 256MB FLASH+128MB DDR3
-New structure, drawing design of frame mental strip
-support Ethercat communication (ethernet model only), convenient for multi-screen online
-More space, interface is facing down and wire out from lower,





  • Previous:
  • Next:

  • specifi

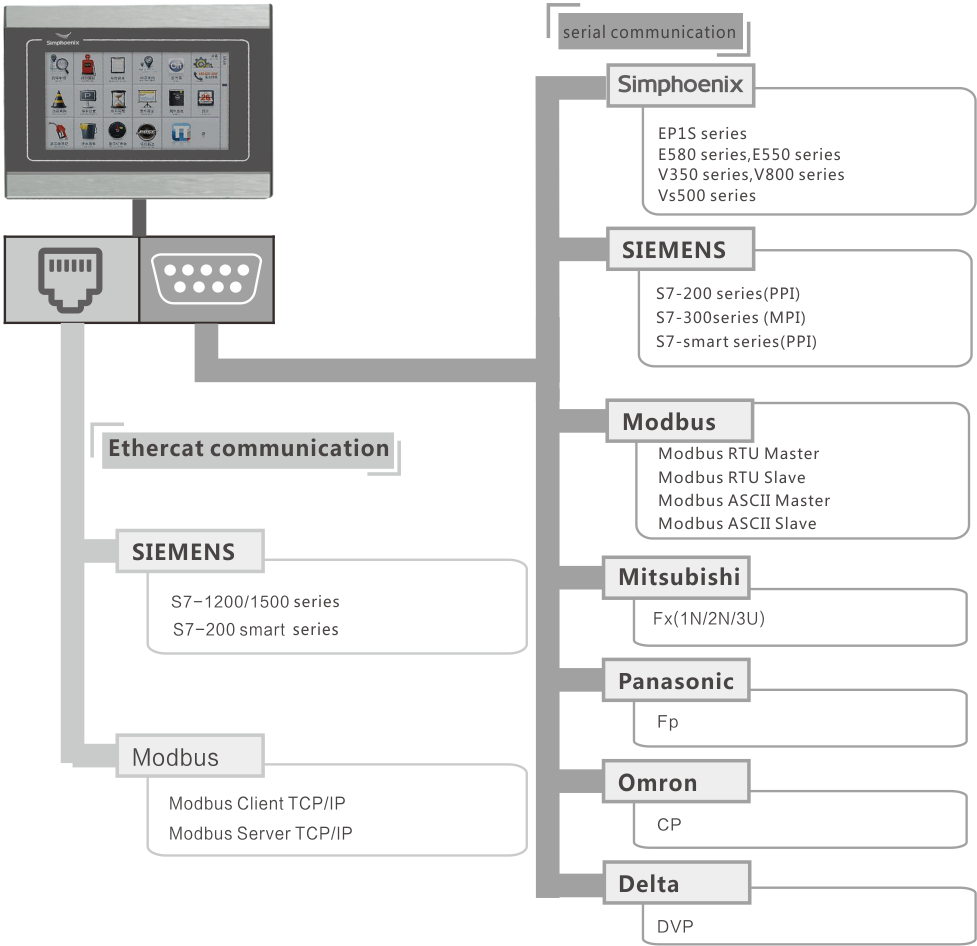

    interface specification

    接口说明

    安装
